location_on Greater Wellington, Hutt Valley & Coastal Specialists

Beautiful views. Better living.

Thoughtfully engineered architectural aluminium joinery and high-performance Low-E glazing designed deliberately for Greater Wellington’s coastal winds, hillside terrain, and light-filled living.

Expansive architectural sliding glass doors overlooking sunlit Wellington hillside
NZBC Clause H1 Zone 4 Certified
verified

10-Year Master Joiners Warranty

Fabricated at 12 Victoria St, Petone

100% NZ
verified

NZBC Clause H1

Zone 4 Compliant

air

NZS 4211 Tested

Severe Coastal Wind

shield

10-Yr Warranty

Master Joiners

storefront

Petone Studio

12 Victoria St

home_repair_service Our Craft & Services

What We Do

Bespoke architectural aluminium joinery engineered specifically for Greater Wellington’s coastal winds, marine salt air, and modern indoor-outdoor living.

Architectural Awning Windows in Wellington Custom Windows

Architectural Windows

Awning, casement, and grand clerestory highlight windows featuring 34mm polyamide thermal breaks engineered to conquer severe Wellington Southerlies.

NZBC H1 Pass Extra High Wind 316 Stainless Cams

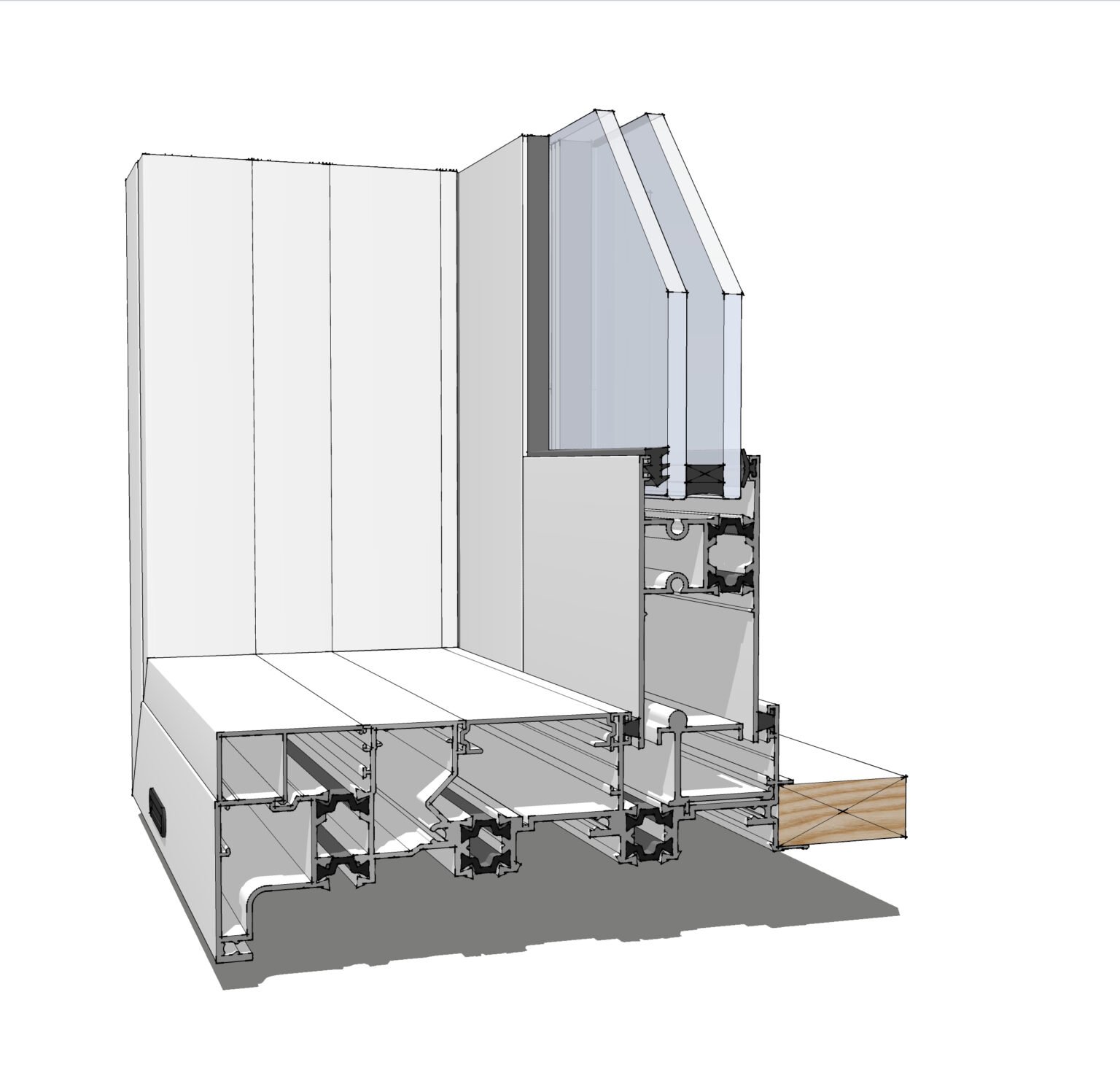

Multi-Slide Cavity Stacking Doors Wide-Span Doors

Multi-Slide & Stacker Doors

Panoramic sliding glass doors spanning up to 12 meters with zero-threshold flush sills and continuous sub-sill drainage for seamless terrace living.

Flush Level Sill Cavity Pocket Stacker Whisper Glide
Grand Architectural Pivot Door Entrance Statements

Grand Pivot Entrance Doors

Dramatic entry doors up to 3.4m height with concealed FritsJurgens hydraulic pivots, solid insulated cores, and full-length bronze pull bars.

Concealed Hydraulic Drop-Down Seal Smart Lock Ready
Thermal Break Double Glazing Cross Section Thermal Retrofit

Thermal Glazing Upgrades

Upgrade cold, crying single-glazed windows with argon-filled SunCool Low-E double glazing units that eliminate condensation and slash heating bills.

R0.54 Low-E Argon Zero Condensation SilenceShield 39dB
Wellington Coastal Hillside Residence Engineering & Consent

Wind Engineering & H1 Consents

Full structural engineering certifications for Extra High (EH) and Specific Engineering Design (SED) coastal wind zones, plus building consent compliance packs.

NZS 4211 Tested 900 Pa Water Tested Council Consent Packs
AAW Workshop and Showroom in Petone Showroom Consultation

Petone Studio & Estimating

Visit our Petone facility to test full-scale operational doors, inspect 25µm bronze anodised finishes, and review your architectural plans with master joiners.

12 Victoria St Petone Blueprint Estimating Full Scale Displays
tune Livewire Reactive Simulator

NZBC Clause H1 Thermal Compliance Calculator

Real-time whole-window R-value modeling against Greater Wellington Zone 4 minimums

verified NZBC H1 PASS
Calculated Performance
R0.56 m²K/W Whole Unit
Zone 4 Minimum: R0.46
Indicative Unit Budget NZD $6,500 – $8,400 Excludes delivery & site installation
Transfer Spec to Quote arrow_forward
Master Joinery Systems

Engineered For Wellington

View Full Catalog arrow_forward
Architectural Awning Window
Series 800

Architectural Awning Window

Engineered for extreme coastal gusts with whisper-quiet cam operations.

Thermal System: Polyamide Thermal Strut (34mm)
Typical U-Value: 1.7 - 2.1 W/m²K (Whole Window)
Wind Zone Rating: Extra High (EH) / Specific Engineering Design (SED) NZS 4211
Series 800 Multi-Slide Door
Series 800

Series 800 Multi-Slide Door

Monumental spans and whisper-glide tracks connecting interior sanctuary with Cook Strait views.

Thermal System: Dual Polyamide Thermal Strut Matrix
Typical U-Value: 1.6 - 1.9 W/m²K
Wind Zone Rating: Extra High (EH) / SED Coastal NZS 4211:2008
Architectural Pivot Entrance Door
Series 900

Architectural Pivot Entrance Door

A commanding architectural statement with balanced hydraulic pivot hardware.

Thermal System: Thermally Broken Perimeter with Insulated Solid Panel Core
Typical U-Value: 1.5 W/m²K
Wind Zone Rating: Very High (VH) to Extra High (EH)
cottage Case Study • Eastbourne, Lower Hutt

Eastbourne Coastal Pavilion

Directly facing Wellington harbour's unforgiving southerly swells, the Eastbourne Coastal Pavilion requires relentless structural resilience paired with sublime transparency.

Architect Herriot Melhuish O'Neill Architects (HMOA)
Wind Rating Extra High (EH) - NZS 4211
"AAW understood the Wellington elements better than anyone. In the worst 130 km/h southerlies of winter, the living room is whisper silent and perfectly warm." — Alistair & Meredith Thorne, Homeowners, Eastbourne
Eastbourne Coastal Pavilion
Key Questions Answered

Common Questions & Advice

Quick facts for specifying high-performance joinery in Wellington's unique coastal conditions.

verified

NZBC Clause H1 in Wellington Zone 4

Mandates minimum whole-window R0.46 m²K/W. AAW Series 800 with 34mm thermal struts and SunCool Low-E delivers R0.50 – R0.56, providing 100% building consent compliance.

air

Cook Strait Coastal Gale Testing

Every suite is certified to NZS 4211:2008 for Extra High (EH) & SED wind zones with 900 Pa water resistance, eliminating water ingress and high-wind whistle.

door_sliding

Zero-Threshold Flush Sills

Our recessed multi-slide pocket doors use concealed sub-sill linear drainage compliant with NZBC E2/AS1, giving true level-step living without pooling water.

shield

25-Year Marine Grade Warranties

For sites within 500m of salt spray (Eastbourne, Seatoun, Kāpiti), we specify 25µm architectural hard anodising backed by 20 to 25-year anti-corrosion warranties.

Architectural Estimating

Ready to discuss your joinery schedule?

Upload your floor plans and window schedules directly to our Petone workshop team for an NZBC H1 compliant proposal.
